Autoanchor AA560 Kit Black
Description

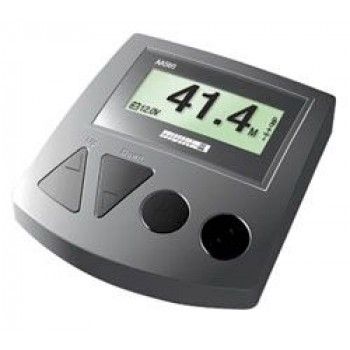

The AA560 electronic windlass control and rode counter (chain counter) is the latest in the 500 series of Auto Anchor products designed to operate either rope and chain or all chain rode.
Features -
Improved contrast on the LCD
Automatic Sensor Detection – no need to select sensor in the set up
Manual control stop at docking distance – stops the windlass during retrieval when using manual and automatic operation
Swap controls option in the set up – this option means the Up button can be used as Out and the Down button can be used as In
Drum windlass counting capability
Improved troubleshooting – Simplified diagnostics and built in voltmeter with expanded technician diagnostics
Plus -
“One touch” automatic function deploys and retrieves a preset length of anchor rode
Docking alarm and pre-set stopping point help protect the boat during anchor retrieval
Adjustable backlighting ensures clear night operation
Choice of feet or metres rode measurement
Safety lock reduces unwanted windlass operation
Easy installation and set up
Plug and play sensor installation
Use with DC, AC and hydraulic windlasses
Logs windlass operating hours for maintenance
Inbuilt diagnostics for troubleshooting installation issues
Install up to 2 units or combine with other AutoAnchor products for multiple stations on the boat
For all-chain counting, the AA560 also operates with a reed switch sensor, including those fitted directly in the windlass gearbox
Counts with high current footswitches
Works with all other AA electronic sensors for retrofitting ie Grey, Black & Flat
Weather cover to protect the console unit
Technical Specifications -
Power Supply: 12/24V DC
Temperature Range: 23°F to 140°F (-5°C to 60°C)
Current Consumption: 70mA
Solenoids: Max 4 Amp draw
Maximum voltage: 30V
Dimensions, Clear Space Required: 140mm/5.51″(w) x 130mm/5.12″(h)
EMC/Protection/CE: EN60945
