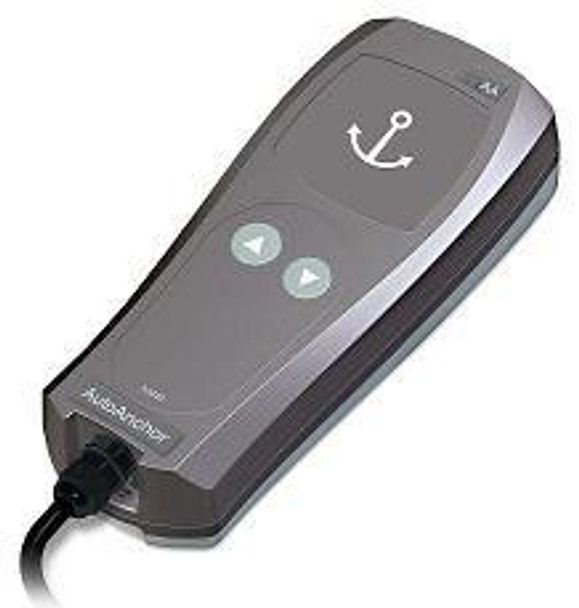

AA320KIT REMOTE 2 OUTPUT 4M SPIRAL
Description
Tough hand-held cable remote controls for marine equipment including windlasses, thrusters, lights, anchorwash, davits, passerelles, hatches, transom doors, and self furling sail systems.
2 Outputs
2 Buttons Up/Down
Features -
Electrical protection against back-emf
Ergonomic shape with rubber over-moulding for shock protection and grip
Stowage cradle
Operation in parallel with all AutoAnchor products – toggle switches, foot switches or other control equipment
Connect to DC, AC and Hydraulic systems
Rugged cable connectors with:
◦ Moulded plug and socket rated to IP67
◦ Gold plated contacts on plug and socket to reduce corrosion
◦ Gold plated 3 pin panel plug
◦ Socket sealing cap
Technical Specifications -
Maximum Operating Voltage: 30V DC or 25V AC (RMS)
Maximum Output Current: 3A
Temperature Range: 23°F to 140°F (-5°C to 60°C)
Enclosure Dimensions(HxWxD): 150.46 mm x 64.37 mm x 47.42mm (5.92″ x 2.53″ x 1.87″)
IP Rating: IP67
