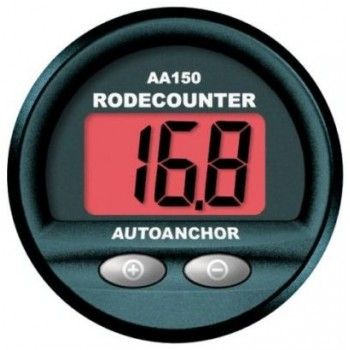

Auto Anchor AA150 Kit Rope/Chain Counter
Description
Auto Anchor Panel mount rodecounter for DC electric windlasses using all-chain or rope/chain rode. Also suitable for hydraulic or AC powered windlasses using all-chain rode.
Features -
Rode length monitoring from the helm.
Large LCD display with adjustable red backlighting shows length of anchor rode deployed. Display in feet or metres.
Docking alarm warns skipper when anchor is close to docking.
Pre-programmed calibrations for rope/chain rodes.
Install up to two units or combine with the AA550RC, AA500C or AA601 for multiple stations.
Standard 60mm (2.36”) marine instrument console.
Technical Specifications -
Power Supply: 12/24V DC
Temperature Range: 23°F to 140°F (-5°C to 60°C)
Current Consumption: 50mA
Solenoids: N/A
Maximum Voltage: 30V
EMC/Protection/CE: EN60945
Dimensions: Diameter 60mm (2.36″) Standard Marine Instrument Gauge Size
